Seepage Control Inc. - Sealing Lakes and Ponds with ESS-13

ESS-13 is pumped or poured directly into the water at a pre-determined application rate. The seepage in your pond will decrease 60% to 90% initially, and this original rate will continue to improve with time.

Lake and Pond Contracting

Click here for more information.

The ESS-13 “Spray-On Formulation” can save 75% or more off the installation costs of other lake sealing methods.

Repairing Lakes and Ponds with the Spray-On Method

Click here for more information.

ESS-13 is pre-mixed with our E-13 compaction aid, pumped in pre-measured quantities into the soil with conventional earth moving equipment. The treated soil is then compacted in two consecutive six inch layers.

Treated and Compacted Method of Fixing Lakes and Ponds

Click here for more information.

Address:
115 S. Weber Drive Suite 2
Chandler, AZ 85226
  USA

Toll Free Phone: 1.800.214.9640
Local Phone:
480.763.1180
Fax: 480.763.1182

info@seepagecontrol.com



Permeability Analysis


only search Seepage Control

Waterborne Application

Approximate decrease in the run time of a 200 gpm pump as a result of treatment on a 1-acre pond losing 2” per day to seepage.

  • Untreated:54,000 gal/day loss rate 4.5 hours run time replacing water
  • Treated at 1:1000: 8,640 gal/day loss rate 0.72 hours (43min) run time replacing water

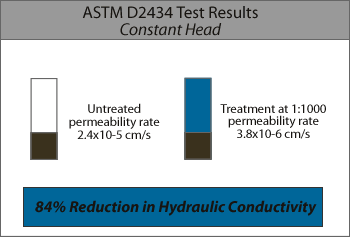

Waterborne Lake and Pond Sealing Test Results

Spray-On Application

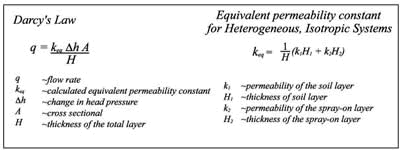

Darcy's Law

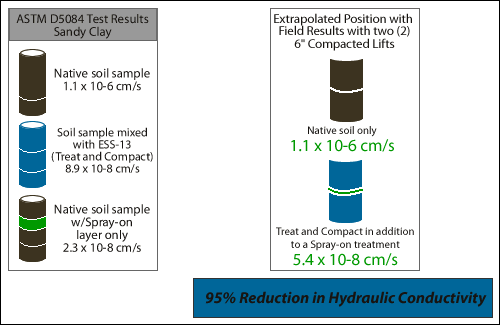

Spray-On Lake and Pond Sealing Test Results



Treated and Compacted Application

Full magnitude reductions in hydraulic conductivity are very common with this product.

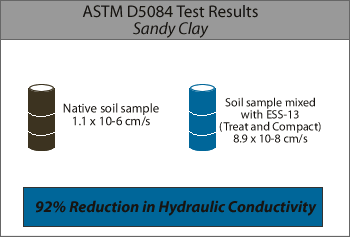

Treated and Compacted Lake and Pond Sealing Test Results

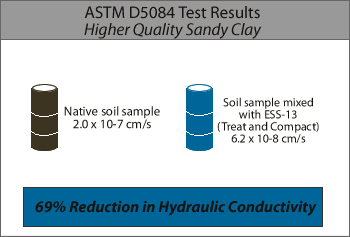

Even good soils like the one below experience a substantial decrease in hydraulic conductivity .

Treated and Compacted Test Results
